Thyristor Stacks for Resistive Loads - SRC SERIES



SRC Series

Thyristor stacks for resistive loads SRC series

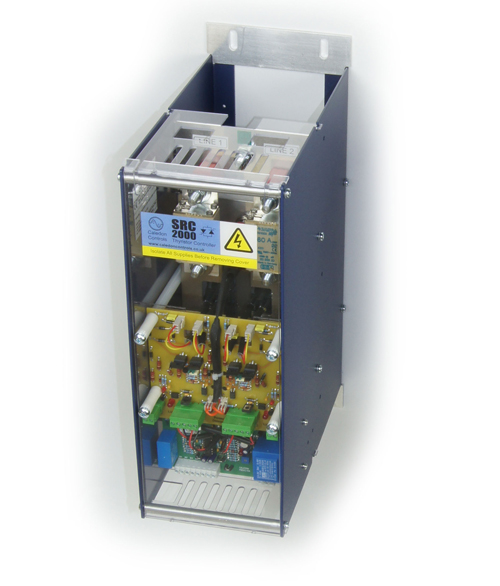

SRC2000-315A
Click image for larger view

FEATURES

Space saving compact, slimline design
Robust conservatively rated construction
Current ratings from 63A to 800A
Long life ball bearing fans
Built in EMC filters
Built in semiconductor fuses
Logic or analogue control input options
Fuse / Phase failure alarm output

GENERAL DESCRIPTION

This range of thyristor stacks has been specifically designed for burst fire control or single cycle burst fire control of resistive loads in medium and high current heating applications for furnace, ovens, dryers etc. These units use a proven MOSFET driver circuit, originally developed in 1995, and feature closely controlled zero-voltage switch on, and low crossover commutation noise.

They are available in single phase (SRC1000), 2-leg 3-phase (SRC2000) and 3-leg 3-phase (SRC3000) versions.

The standard input is a logic signal, but an optional analogue input driver card is available which accepts 0-5V, 1-5V, 0-10V (and 0-20mA, 4-20mA with a 250 ohm burden resistor).

Thyrsistor Resistive Loads SRC series
SRC2000-125A
Click image for larger view

The stacks have generously sized heatsinks and power semiconductors to ensure long term reliability. The power connections are to stud terminals, which are reliable at elevated temperatures, and under conditions of temperature cycling.

The line to line EMC filter capacitors ensure very low conducted emissions, and together with MOV and snubber protection, contribute to very high immunity to conducted interference.

The top and bottom removable mounting clips help simplify installation and subsequent removal for maintenance if desired. The covers enclose both power and signal connections to protect against accidental contact. The width of the units has been kept small to simplify side by side mounting in multi-zone applications.

More detailed product information is available on our downloads page
